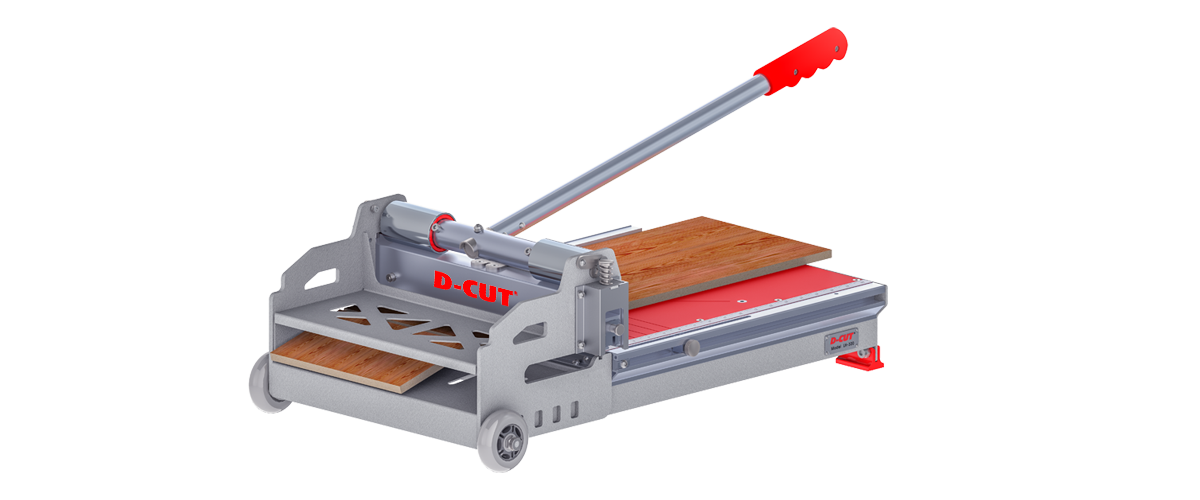

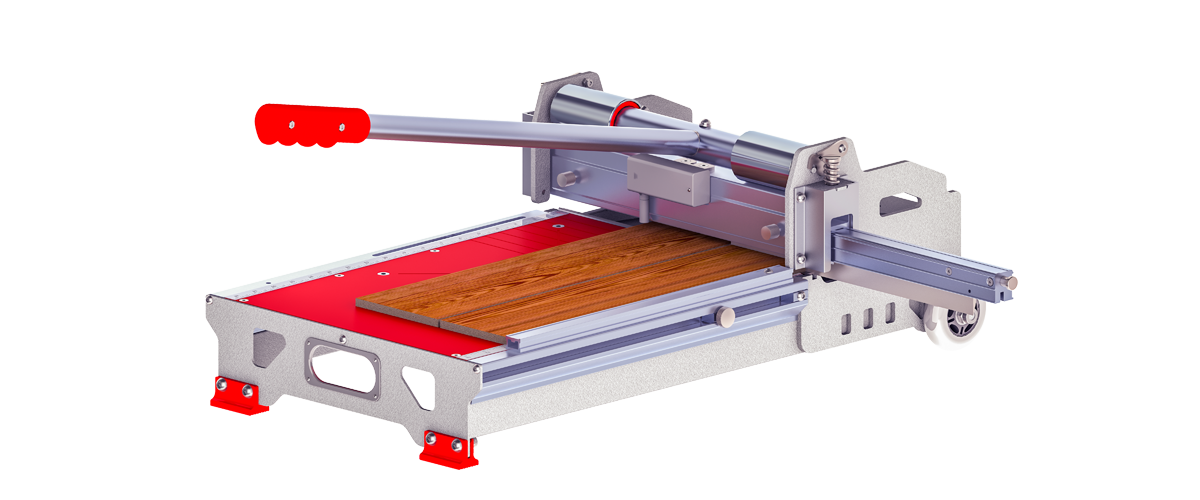

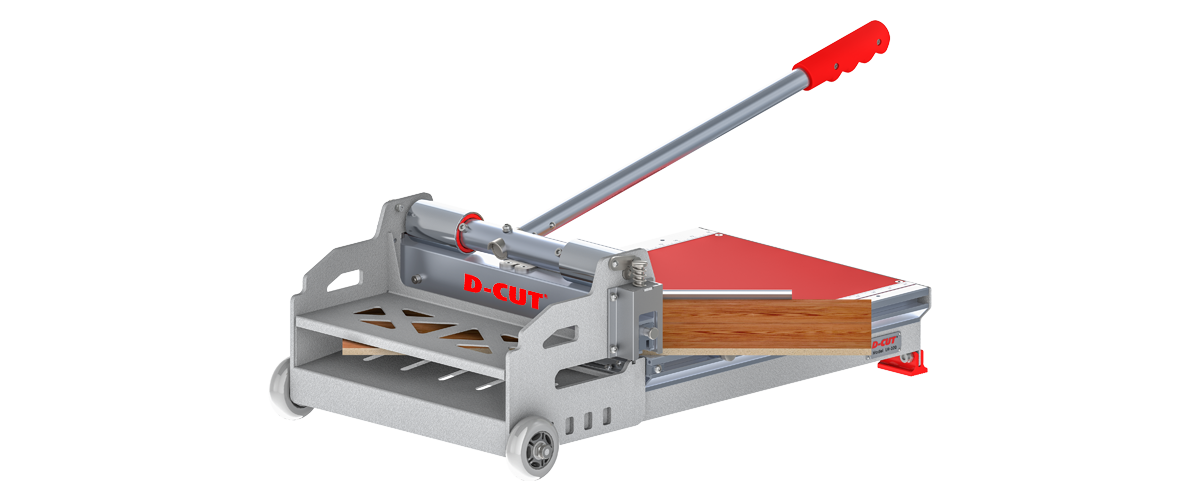

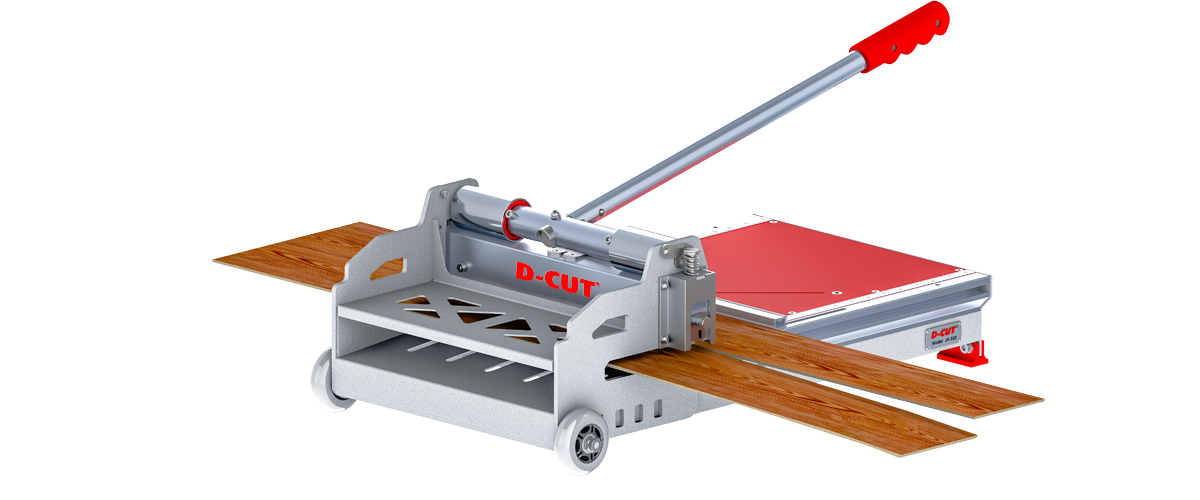

Model: LH-320
Features
DotApplications: Vinyl flooring, laminate flooring, VCT Tile
DotCut: Straight cut, 45° cut, lengthwise cut and notch cut
DotMax. cutting width: 13" and max. cutting depth: 10mm
DotDetails: The blade can be pulled out from either side for a notch cut,  ball-bearing wheels make it move easily
DotBlade: Replaceable tungsten steel blade
DotLight: Battery-powered LED belt-light along the cutting blade
Download Manual
Product Information
Cutting Application: Vinyl flooring, laminate flooring, VCT Tile
Blade Cutting Length: 330 mm / 13 inch
Blade Thickness: 4 mm / 0.15 inch
Angle Cutting: 90°, 45°
Cutting Capacity: Straight cut, 45° cut, lengthwise cut and notch cut; max. cutting depth: 10mm
Package Size: 28.35 × 18.5 × 10.43 inch
Gross Weight: 46.3 Lb
Replacement Blade
Blade Image Item No.: RB-LH320 / DH330
Specification: 330 × 30 × 4 mm
Material: Tungsten Steel
