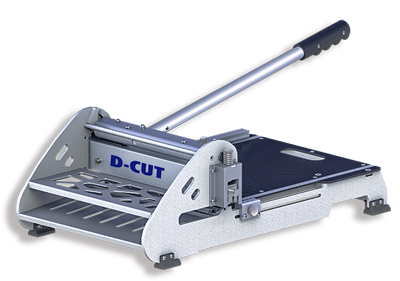

Model: DH-330
Features
DotCut: Straight Cut / Angle Cut / Lengthwise Cut / Notch Cut
DotCapacity: Tungsten steel blade cuts 13” long and 0.4" (10mm) deep
DotBlade Details: The blade can be pulled out from either side of the blade holder to make a notch cut.
Download Manual
Product Information
Cutting Application: Vinyl Flooring, Engineered Wood, and Laminate Flooring
Cutting Depth: 10mm / 0.4 inch
Blade Cutting Length: 330mm / 13 inch
Blade Thickness: 2 mm / 0.078 inch
Angle Cutting: 45 Degree Cut
Package Size: 680 × 440 × 240 mm / 26.77 × 17.32 × 9.45 inch
Net Weight: 14.4 kg / 31.77 Lb
Gross Weight: 15.8 kg / 34.83 Lb
Replacement Blade
Blade Image Item No.: RB-LH320 / DH330
Specification: 330 × 30 × 4 mm
Material: Tungsten Steel

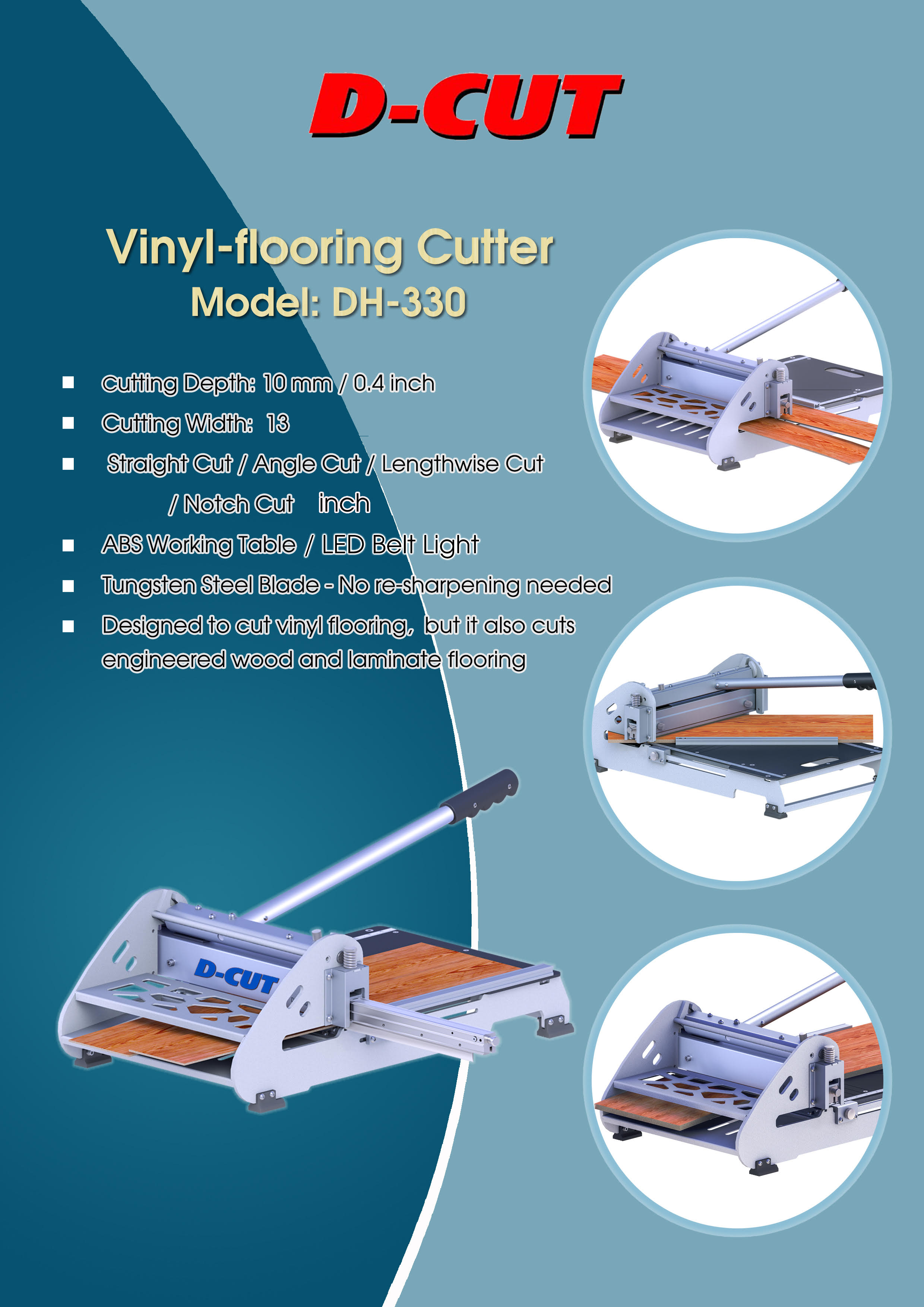

Product Flyer
