Model: AK-360
Features
Dot Applications: Engineered Wood, Laminate and LVT Flooring
Dot Features: Straight cut, angle cut, notch cut, and rip cut
Dot Capacity: A tungsten steel blade cuts 14-1/8” long and 5/8" (17mm) deep
Dot The blade can be pulled out from either side to make a notch cut.
Dot Battery-powered: LED belt light along the blade

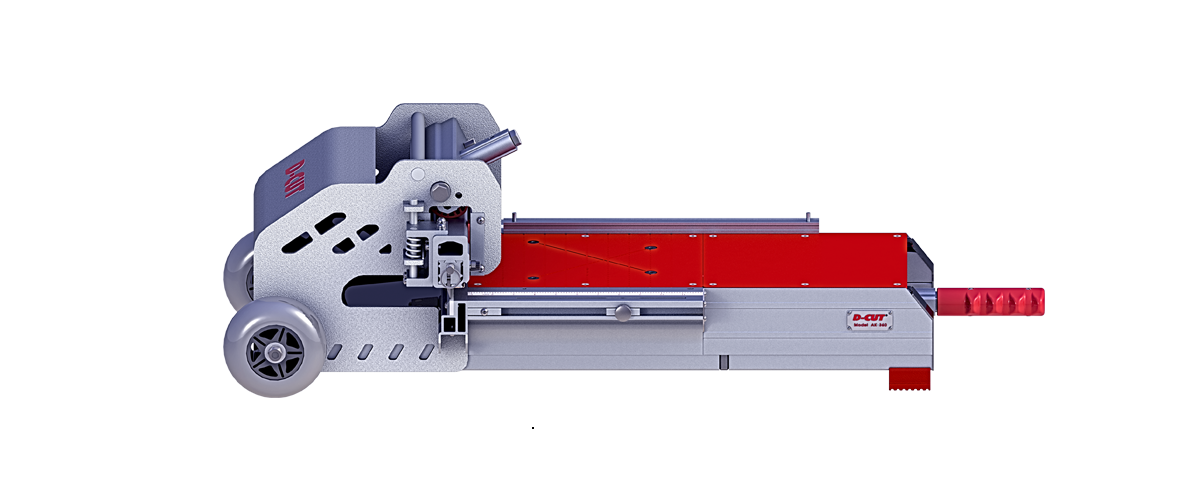

Dot Adjustable handle length: for easy operation, moving, and storage
Download Manual
Product Information
Cutting Application: Engineered Wood, Laminate, and LVT Flooring
Blade Cutting Length: 360 mm / 14-1/8 inch
Blade Thickness: 4 mm / 0.15 inch
Angle Cutting: 45 Degree Cut
Max. Thickness Cutting: 17 mm / 5/8 inch
Package Size: 600 × 300 × 485 mm / 23.6 × 11.8 × 19 inch
Gross Weight: 30 kg / 66 lb
Replacement Blade
Blade Image Item No.: RB-AK/UX
Specification: 360 × 35 × 4 mm
Material: Tungsten Steel
